Description

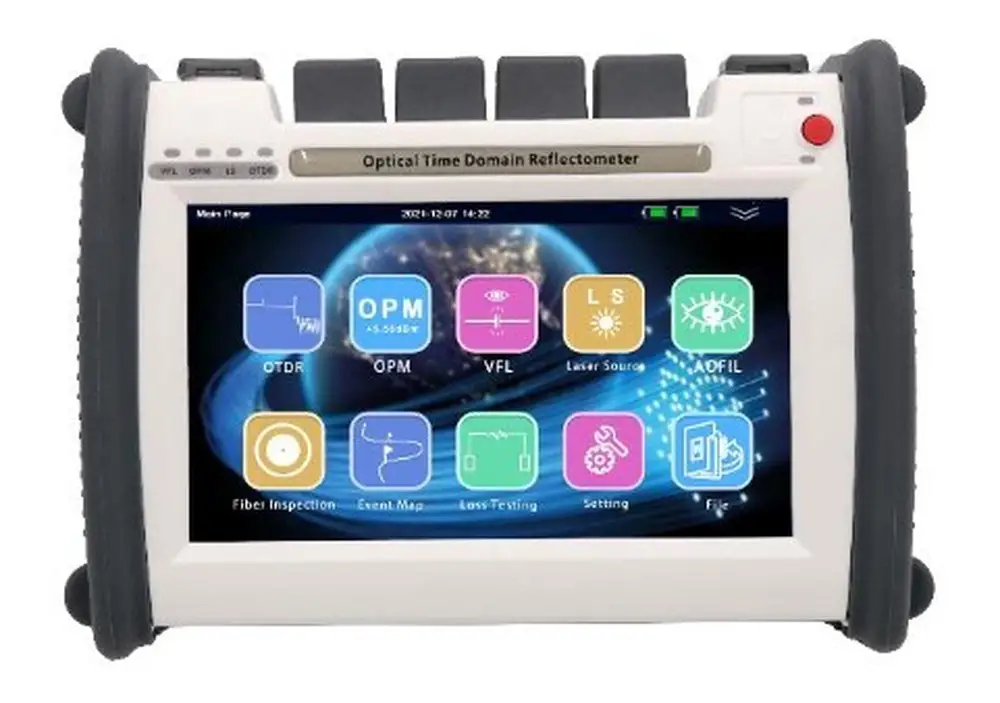

LOT5200 OTDR is designed to help technicians make test
quickly and accurately with simple steps. It combines various
function modules in one unit, including OTDR, Optical Power
Meter, stable Laser Source, Visual Fault Locator, Loss Tester,
Event map and fiber microscope (optional), all the modules
are very useful in optical fiber evaluation.
Features
Multi-Function OTDR Testing
❖ Auto/Manual testing and analysis
❖ Icon-display Fiber Mapper for easy interpretation of network
events
❖ Multiple analysis functions on testing results：
Segment/Event point return loss，Multi curves comparison
❖ In-Line Measurement of PON systems through splitters,
up to 1:128
❖ Any screen display can be screenshot and saved
❖ Fault locating, fiber length/loss/return loss measurement
❖ Connector/ splice/ splitter/ macro bend/ fiber-end detection
❖ GR-196-CORE (.SOR) file format
❖ Flexible file Naming
❖ Built-in Power Meter, Laser Source and VFL modules
❖ Built-in WIFI, Bluetooth and GPS modules (optional)
❖ Smart Phone APP available (Android OS only
High Performance Platform
❖ 7-inch TFT capacitive touch screen
❖ Lightweight, 1.1kg
❖ Excellent Man-Machine interface for easy operation
❖ Short dead zone: EDZ 0.8m, ADZ 4m
❖ 16G internal storage capacity
❖ Full range of models with multiple wavelengths selectable
850/1300/1310/1550/1490/1625/1650nm (customized)
❖ U-disk, SD card, USB cable export data
❖ Damp-dust-shock proof
❖ Over 10 hours continuous operation, or 20 hours standby
